Product introduction
The NORDIK PMC Series is an Intelligent Permanent Magnet Frequency
Conversion Pump. It is designed for high-efficiency performance and features an advanced control interface with several smart protective functions:
• Intelligent Control: Features a control panel with a digital display for real-time monitoring.
• Safety Protections: Includes sensors for water shortage, water leakage, voltage protection, and output pressure errors.
• Special Features: Designed to be “Super quiet” and includes temperature
protection and WiFi connectivity.
The motor is built for high performance and durability in industrial or domestic settings:
• Type: Totally enclosed, fan-cooled, 2-pole IE4 permanent magnet motor.
• Insulation Class: F.
• Enclosure Class: IP44.
• Voltage Range: 180V–260V ($220\text{V} \pm 20\%$).
• Frequency: 50/60 Hz.
• Maximum Speed: Ranges from 4,000 to 5,000 r.p.m. depending on the specific model.
• Liquid Temperature: 0°C to +70°C.
• Ambient Temperature: 0°C to +40°C.
• Liquid PH Range: 6.5–8.5.
• Particle Size: Less than 0.2mm.
Combined with advanced electronic control technology, it really realizes intelligent frequency conversion, constant voltage speed regulation, energy-saving and efficient high-tech products
The setting operation is very simple, no need professional people debigging, everyone can do. Let us stay in the star hotel’s upscale feel.
Adopting a containerized anti dry abrasion mechanical seal for convenient maintenance

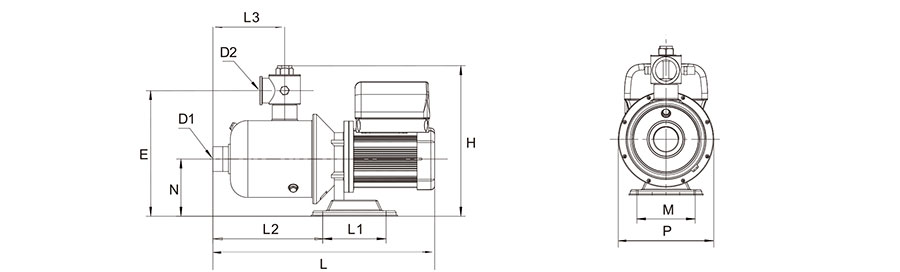

Activity flange Easy to install
Typical application
Easy operation
After power-on and the required pressure setting, water come out when you open the tap. Make your operation more easier
Environment protection
Automatically water supply, no need watertank tower
Super quiet
Centrifugal impeller, extreme silent, to bring your a comfort sleep
NO crash easy maintenance
Centrigual impeller ensures no crash, all the faults can be displayed one by one in the screen
